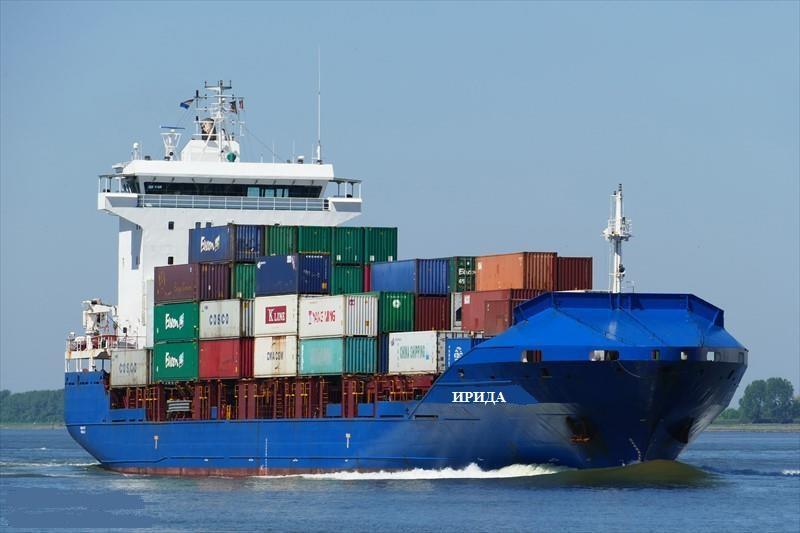

m/v "Irida"

preview

General details

Previous name: ICE STAR
Port of registry: VLADIVOSTOK
Flag: RUSSIA
Build yard: Sainty Shipbuilding (Yangzhou) Co. Ltd
Build no: 05STIG015
Owner/Shipowner: POSEIDON SHIPPING Co., LTD
11V, 1 Morskaya Str., off. 705, 706.
Vladivostok, 690003, Russia.
(IMO # 5208437)
Call sign: UBHR9
IMO number: 9428229
Keel laid: 01.06.2007
Built year: 16.05.2008
Commissioning: 23.11.2018
Class: RMRS
Class id no: 071330
Classification designation: KM*1A, AUT1, CONTAINER SHIP
Type of vessel: Container ship
Minimum safe manning: 11 per
Total number of persons for which life-saving appliances are provide: 19 per

Principal dimensions and capacity

LOA: 129.62 m
LBP: 121.24 m
Breadth: 20.60 m
Depth: 10.80 m
Air draft (constant): 37.81 m
Gross tonnage: 7545
Net tonnage: 3165
Suez canal gross tonnage: / net tonnage: GT: 8143.60 / NT: 6326.13
Lightship: 4441.9 mt
Summer displacement: 12463
Summer deadweight: 8199,6 т
Summer draft: 7.40 m
Cargo capacity (20”TEU): 698 TEU (approx weight of cntr 14 ton)
Fuel capacity = IFO (100%): 688.2 m3
= MGO (100%): 112.9 m3
Fresh water capacity: 109.7 m3
Ballast water capacity: 3315.7 m3
Max tank top load: 8,0 t/m2
Max upper deck load: 1,75 t/m2
Max hatch covers load: 2,0 t/m2
Grain/bale capacity: 12644 m3
Number of holds: 4 (1,2 combined)
Holds dimensions: No 1 – 6.1x10.2x9.5 m; No 2 – 12.2x15.0x12.2 m;
No 3 – 24.4x15.0x12.2 m; No 4 – 24.4x15.0x12.2 m
Hatch covers dimensions: No 1 – 6.35х10.7 m; No 2 – 12.5х15.8 m;
No 3 – 25.44х15.8 m; No 4 – 25.44х15.8 m
Type of opening covers: Hydraulic mechanism for lifting the covers

Main engine, speed, fuel consumption

Main engine (maker/type): MAK 8M 43
Power: 9655.2 B.H.P. 7200kW at 500 RPM
Bow thruster: BRUNVOLL FU-63 UC1550 600kW-378RPM
On-board power supply (V, Hz): 380V, 50Hz
Range: 21 days
Designed speed: Ballast 19.0 knots; Load 18.0 knots
Economy speed: 12.5 knots
Fuel consumption (100% load m/e) draft 7.4 m: IFO – 32.0 mt; MGO – 1.7 mt
Fuel consumption in economy mode: IFO – 28.0 mt; MGO – 1.7 mt
Fuel consumption at the port: IFO – 0.0 mt; MGO – 1.9 mt

Insurance company

P&I INGOSSTRAKH INSURANCE COMPANY
H&M INGOSSTRAKH INSURANCE COMPANY
