General details
Previous name: | Anke Ehler |
Port of registry: | VLADIVOSTOK |
Flag: | RUSSIA |
Build yard: | J.J, Sietas Schiffswerft, Гамбург, Германия |
Build no: | 1134 |
Owner/Shipowner: | POSEIDON SHIPPING Co., LTD 11V, 1 Morskaya Str., off. 705, 706. Vladivostok, 690003, Russia. (IMO # 5208437) |
Call sign: | UAZY |
IMO number: | 9208459 |
Keel laid: | 08.12.1998 |
Built year: | 01.04.2000 |
Commissioning: | 15.12.2014 |
Class: | RMRS |
Class id no: | 980624 |
Classification designation: | KM * Arc4 AUT1 Container Ship |

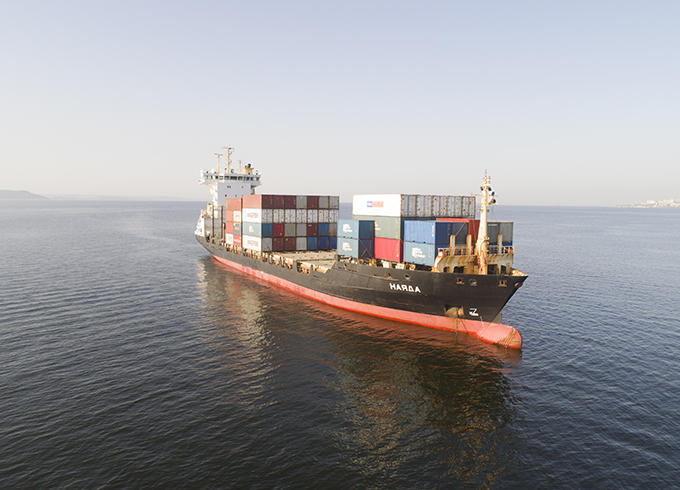

Type of vessel: | Container ship |
Minimum safe manning: | 12 чел |
Total number of persons for which life-saving appliances are provide: | 19 чел |
Principal dimensions and capacity
LOA: | 118.27 m |
LBP: | 109.04 m |
Breadth: | 17.90 m |
Depth: | 9.20 m |
Air draft (constant): | 37.75 m |
Gross tonnage: | 5067 |
Net tonnage: | 2530 |
Suez canal gross tonnage: / net tonnage: | GT: 5115.38 / NT: 4765.09 |
Lightship: | 2993.0 mt |
Summer displacement: | 9794.5 mt |
Summer deadweight: | 6850.0 mt |
Summer draft: | 7.09 m |
Cargo capacity (20”TEU): | 658TEU (~ вес ктк 14 тонн) |
Fuel capacity = IFO (100%): | 403.55 m3 |
= MGO (100%): | 158.82 m3 |
Fresh water capacity: | 95.95 m3 |
Ballast water capacity: | 2315 m3 |
Max tank top load: | 9 t/m2 |
Max upper deck load: | 1.81 t/m2 |
Max hatch covers load: | 1.75 t/m2 |
Grain/bale capacity: | 8528.0/7693.0 m3 |
Number of holds: | 3 |
Holds dimensions: | No 1 – 12.26х10.0 m; No 2 – 24.50х15.5 m; No 3 – 24.50х15.5 m |
Hatch covers dimensions: | No 1 – 12.66х10.42 m; No 2 – 25.10х15.52 m; No 3 – 24.50х15.5 m |
Type of opening covers: | Hydraulic mechanism for lifting the covers |
Main engine, speed, fuel consumption
Main engine (maker/type): | MAK 8М43 |
Power: | 6100,00 kW |
Bow thruster: | 550 kW |
On-board power supply (V, Hz): | 380V, 50Hz |
Range: | 17 days |
Designed speed: | Ballast 18.8 knots; Load 17.5 knots |
Economy speed: | 12.5 knots |
Fuel consumption (100% load m/e) draft 6.4 m: | IFO – 26.5 mt; MGO – 0.9 mt |
Fuel consumption in economy mode: | IFO – 12.5 mt; MGO – 0.9 mt |
Fuel consumption at the port: | IFO – 0,0 т/сут; MGO – 1,3 т/сут |
Insurance company
P&I | INGOSSTRAKH INSURANCE COMPANY |
H&M | СПАО «ИНГОССТРАХ» |
